VIS-7039 – Wired Handicap Stainless Steel Square Push To Exit Button/Switch For Access Control With NC, COM And NO Outputs, Back Box Included – Visionis

$153.000,00

ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.

Description

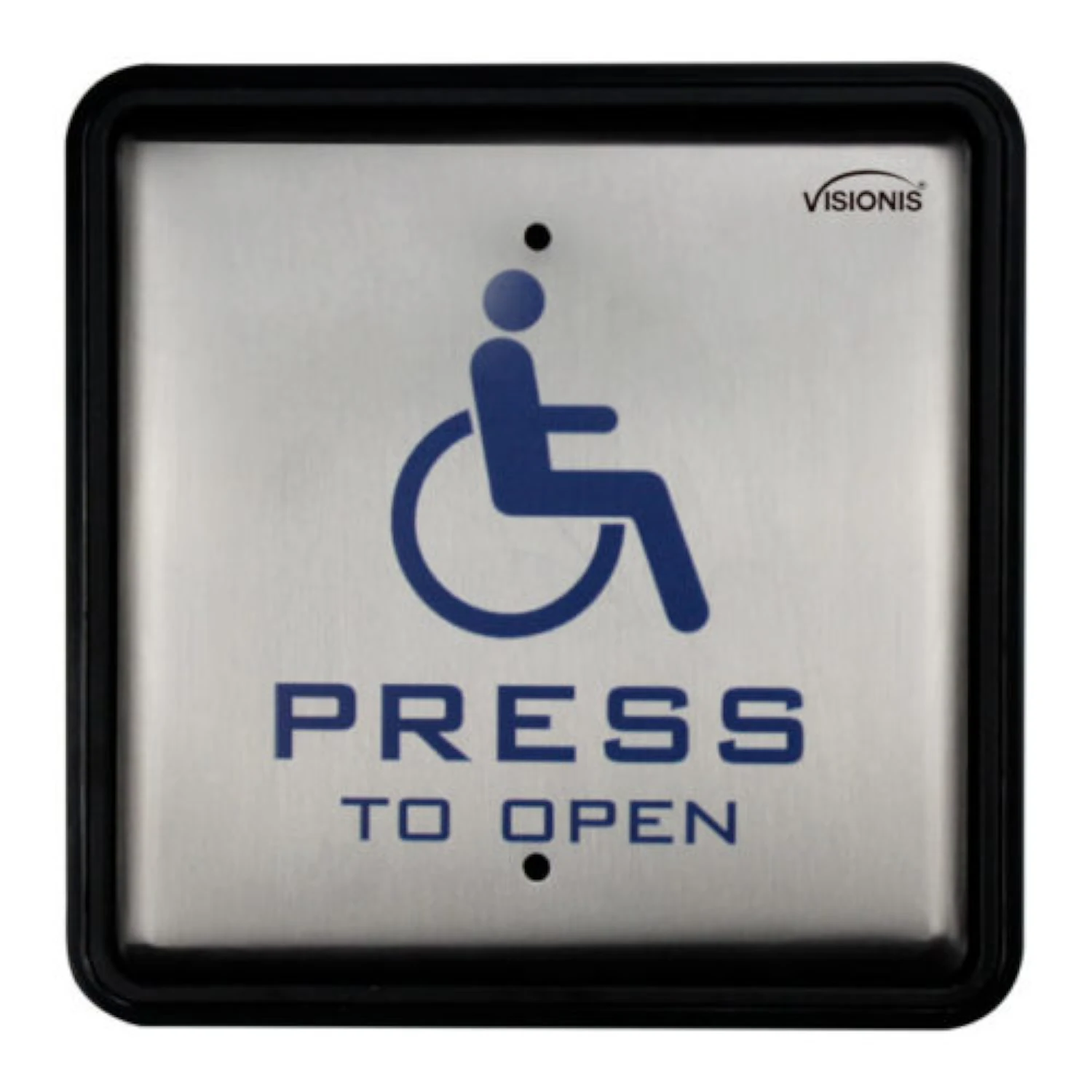

The VISIONIS VIS-7039 is a quality stainless steel push to exit button. It features a handicapped logo and designed for such purposes. The button is surface mounted and durable to last.

This actuator is compatible with all VISIONIS automatic door openers and most other openers as well. This push to exit button is ideal for any access control application that requires handicap accessibility in either commercial or residential units.

Features

  • Wired push-button with a square shape for handicap.
  • Durable design offers low maintenance combined with elegance.
  • Various functions are available through function settings.
  • Push-Button: This trigger only opens the door when a user presses a button.
  • Access Control: This type of trigger is perfect for doors that need to have limited access.

Specifications

Model No. VIS-7039:

  • Material: 304 stainless steel with a brushed finish

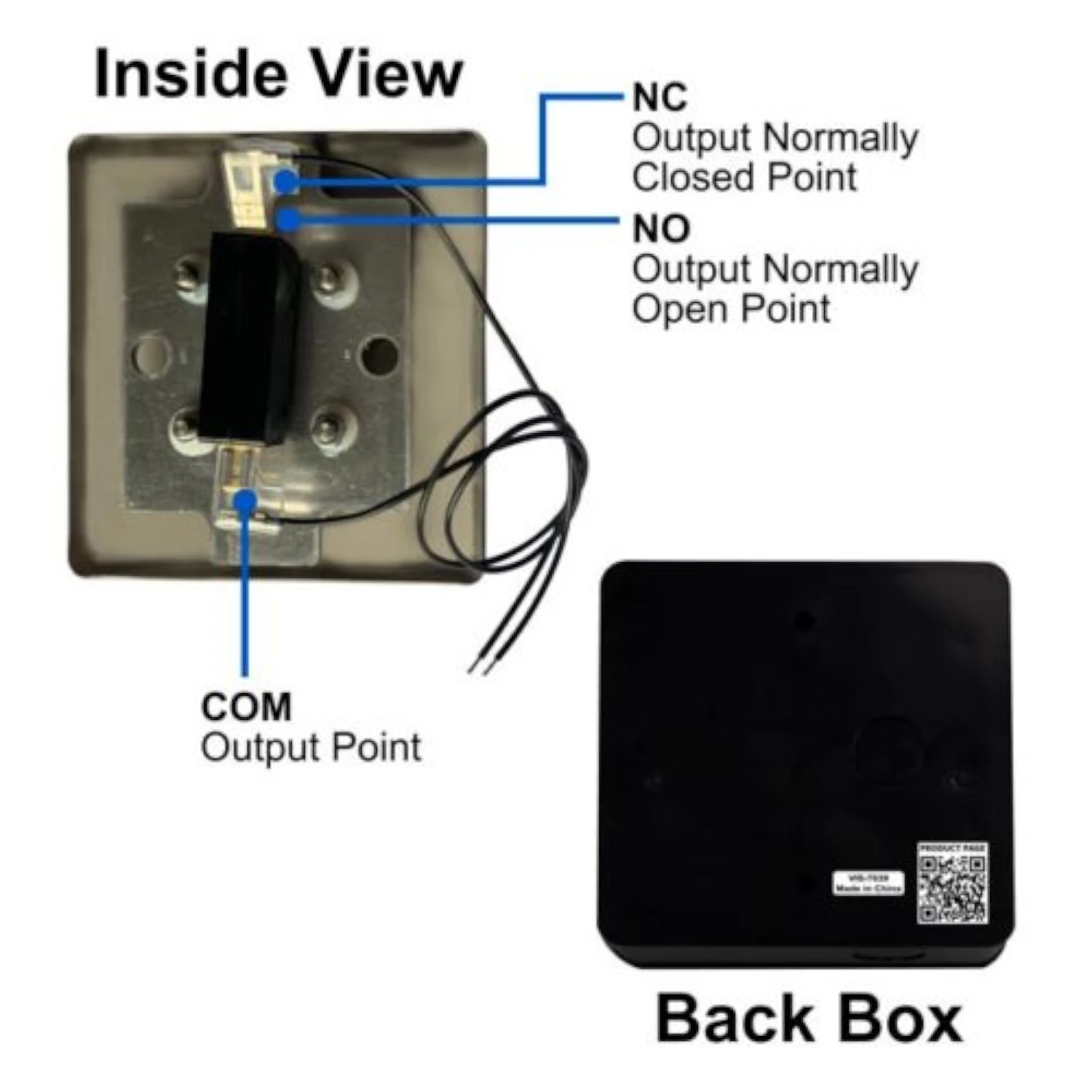

  • Output Contact: NC, COM, NO
  • Power: ≤250VAC 15A
  • Operating Temperature: -20°C to +60°C (-4°F to 140°F)

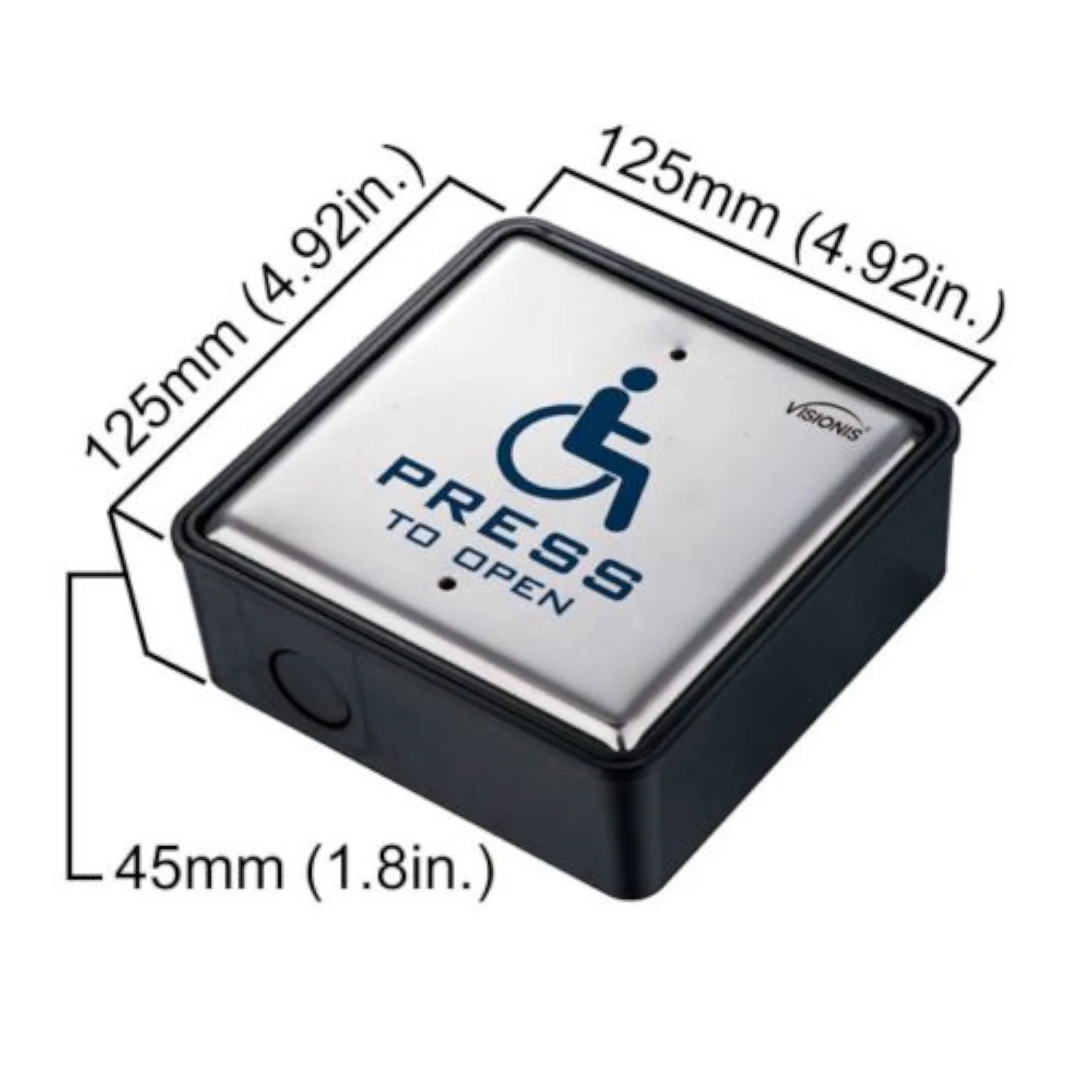

  • Dimensions Aluminum Cover Size: 115x115x45mm (4.5in. x 4.5in. x 1.8in.)
  • Dimensions with Back Box: 125x125x45mm (4.92in. x 4.92in. x 1.8in.)
