Visionis VIS-3000 – Access Control Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad + Reader Standalone + Wiegand 26 Wide Design No Software EM


This product is unavailable
ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.

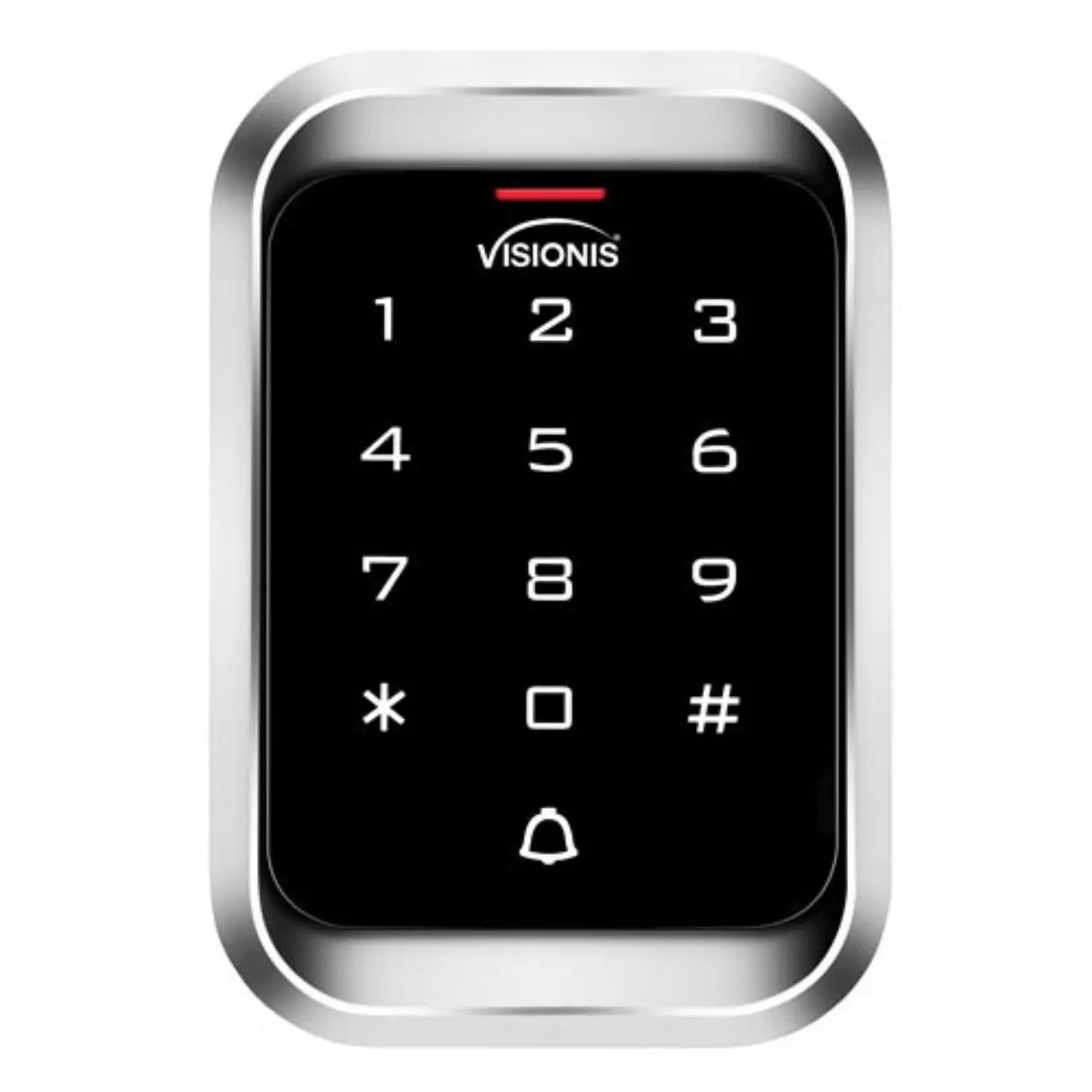

VIS-3000 Keypad/Card Reader Description

The device is a metal access control keypad and proximity card reader which supports EM, and MFR card types, it’s one of the most advanced standalone access control.

It adopts a unique design with metal material and durable backlight metal keyboard, builds-in USA Atmel microprocessor, with strong anti-interference ability, high security and reliability, powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.

VIS-3000 Features

  • Ultra-low power consumption: Standby current is less than 30mA.
  • Input & Output: Wiegand26.
  • Searching Time: Less than 0.1s after reading card.

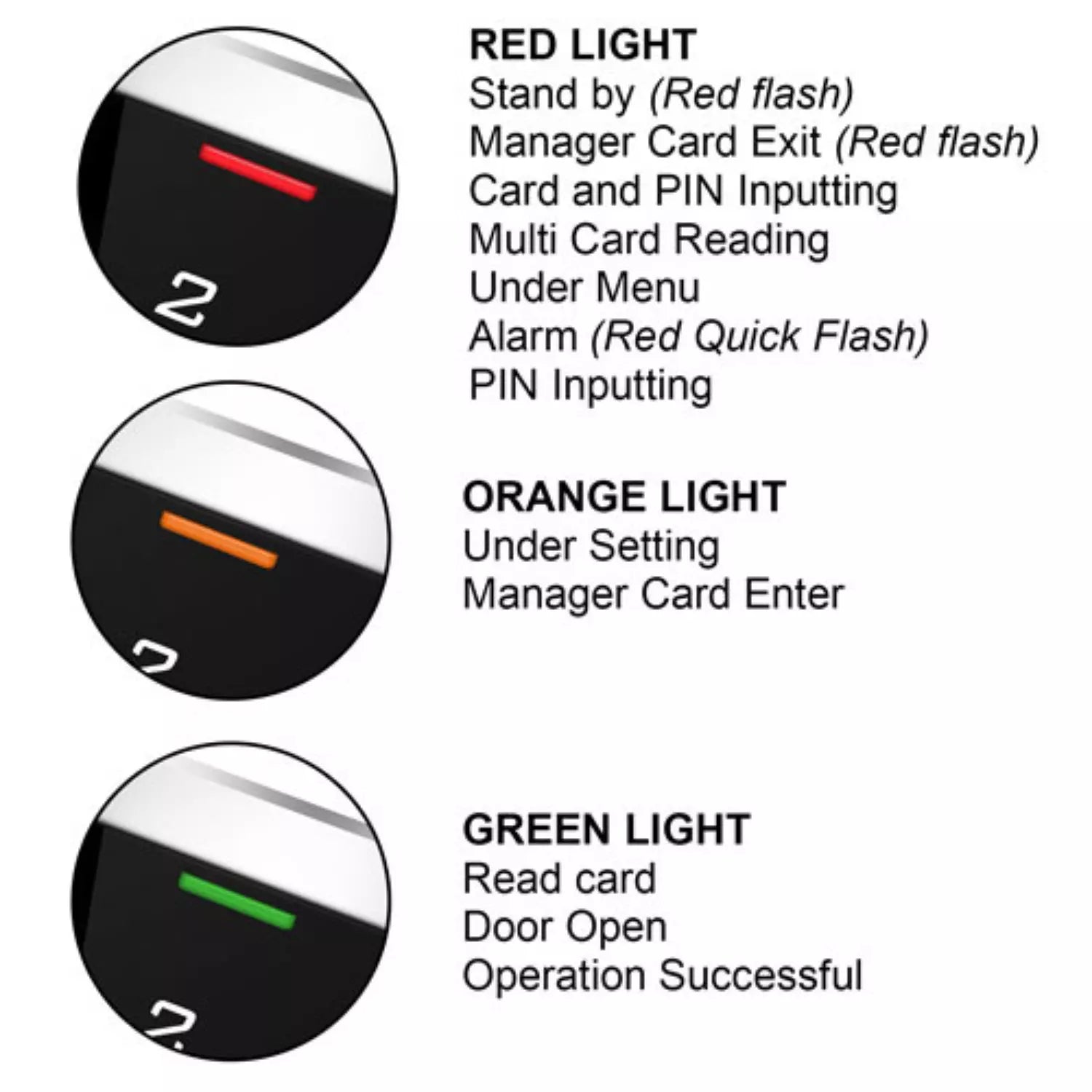

  • Backlight Keypad: Easy to operate at night.
  • Doorbell interface: Support external wired doorbell.
  • Access ways: Card, code, card+code.
  • Independent codes: Use codes without related card.
  • Change Codes: Users can change codes by themselves.

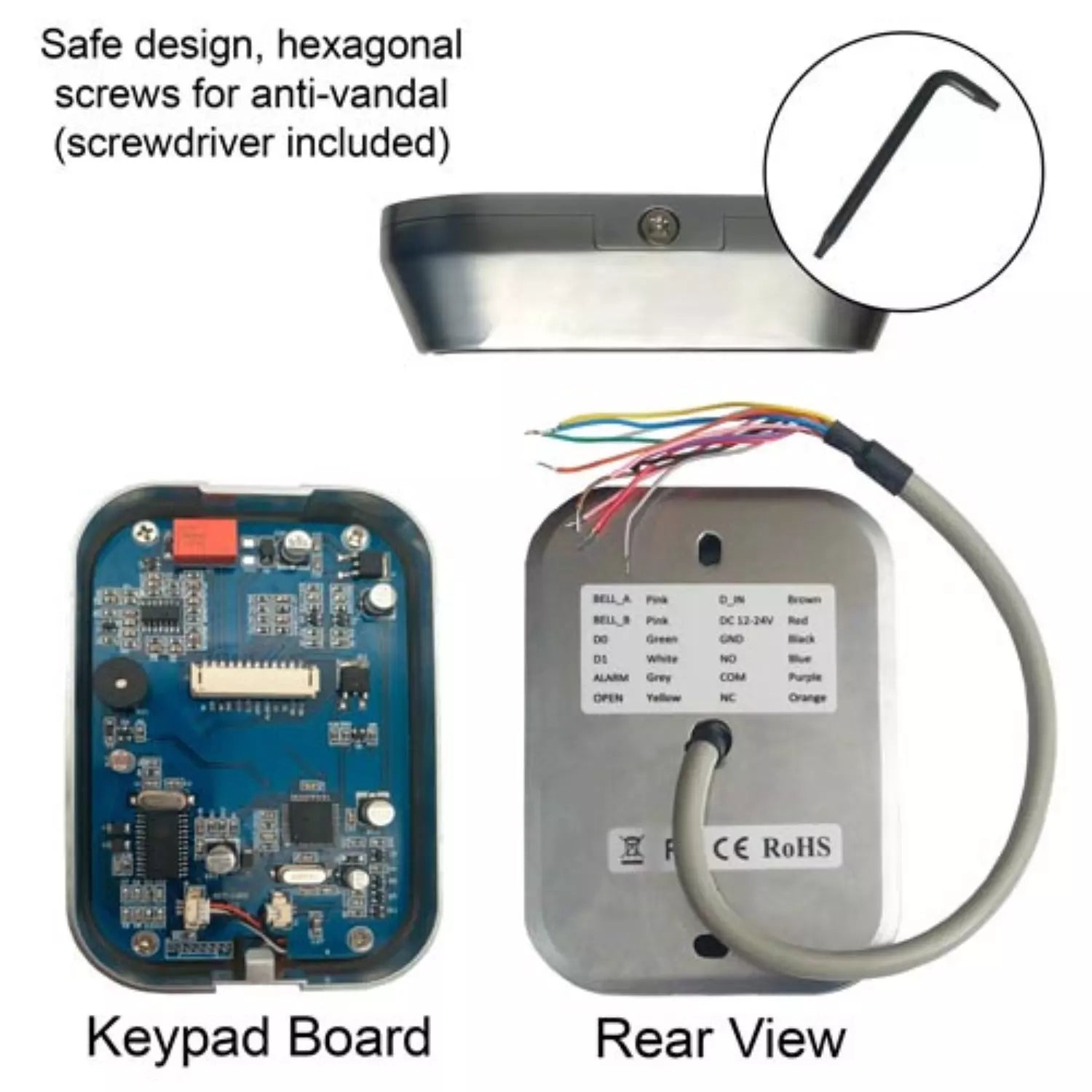

  • Anti-tamper alarm: Alarm is activated after tear down illegally.
  • Delete Users by card NO.: Delete card NO. by keypad to eliminate security risk completely.

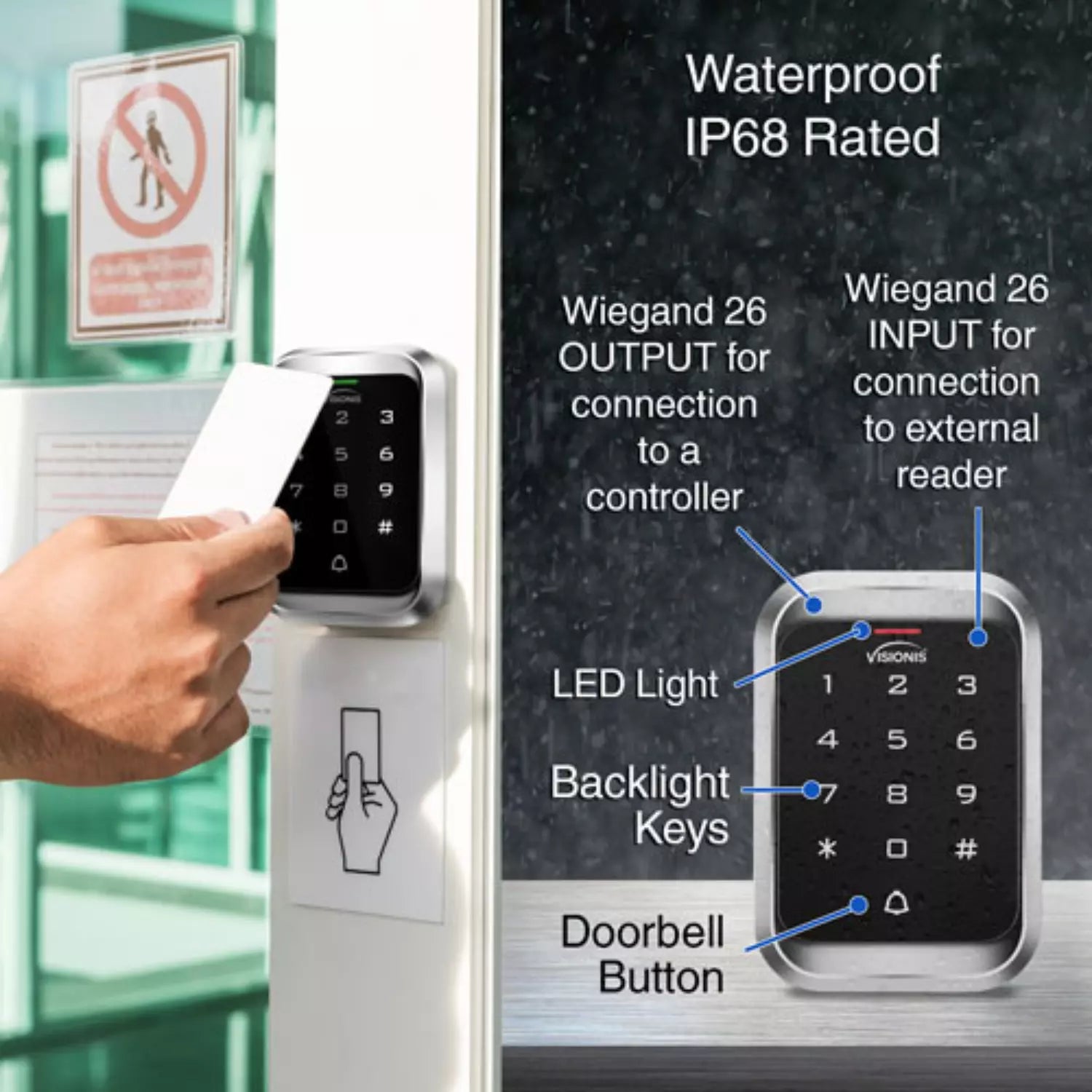

  • Waterproof Rate: IP68, indoor or outdoor use.
  • The VIS-3000 is compatible with EM, MFR proximity cards.

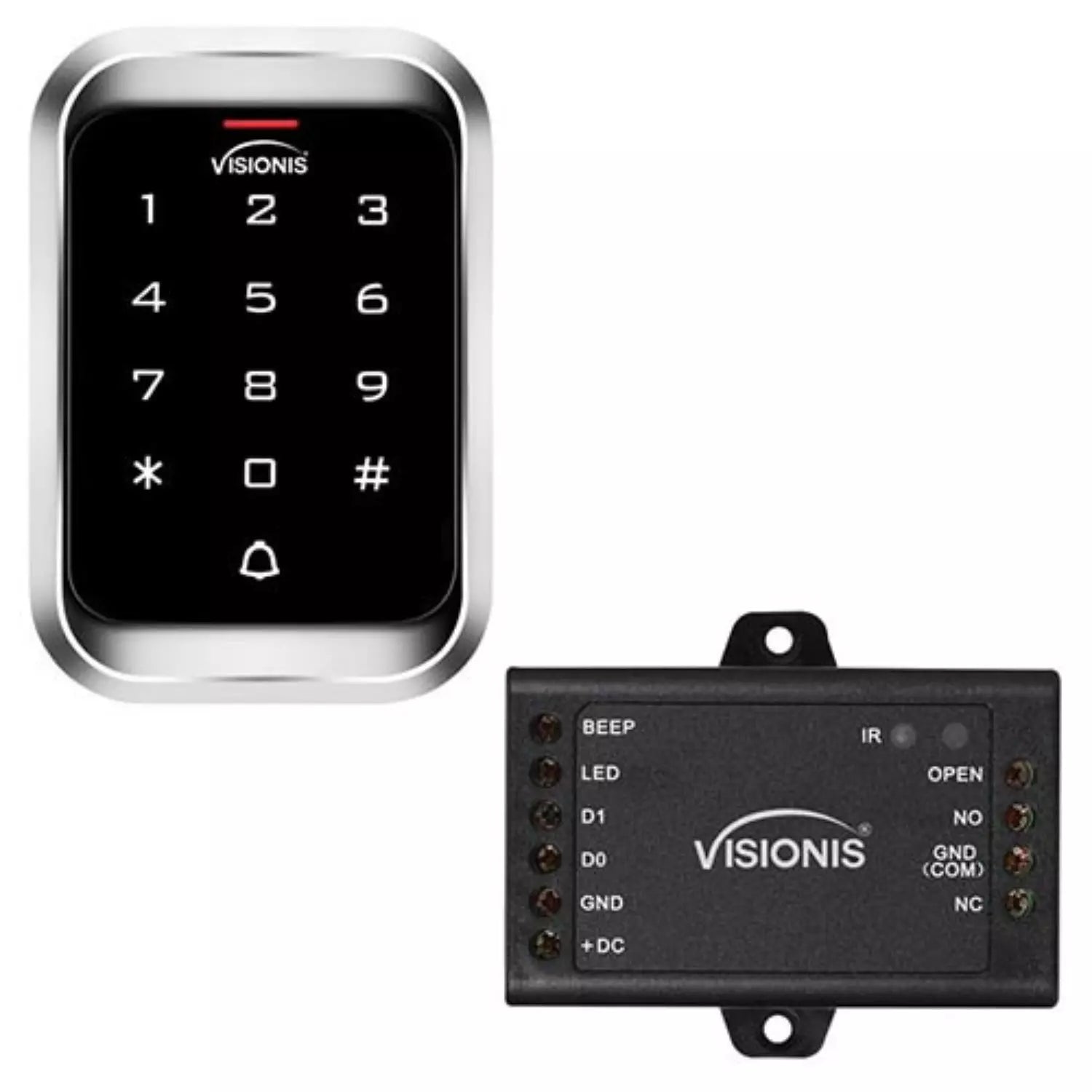

VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)


  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
