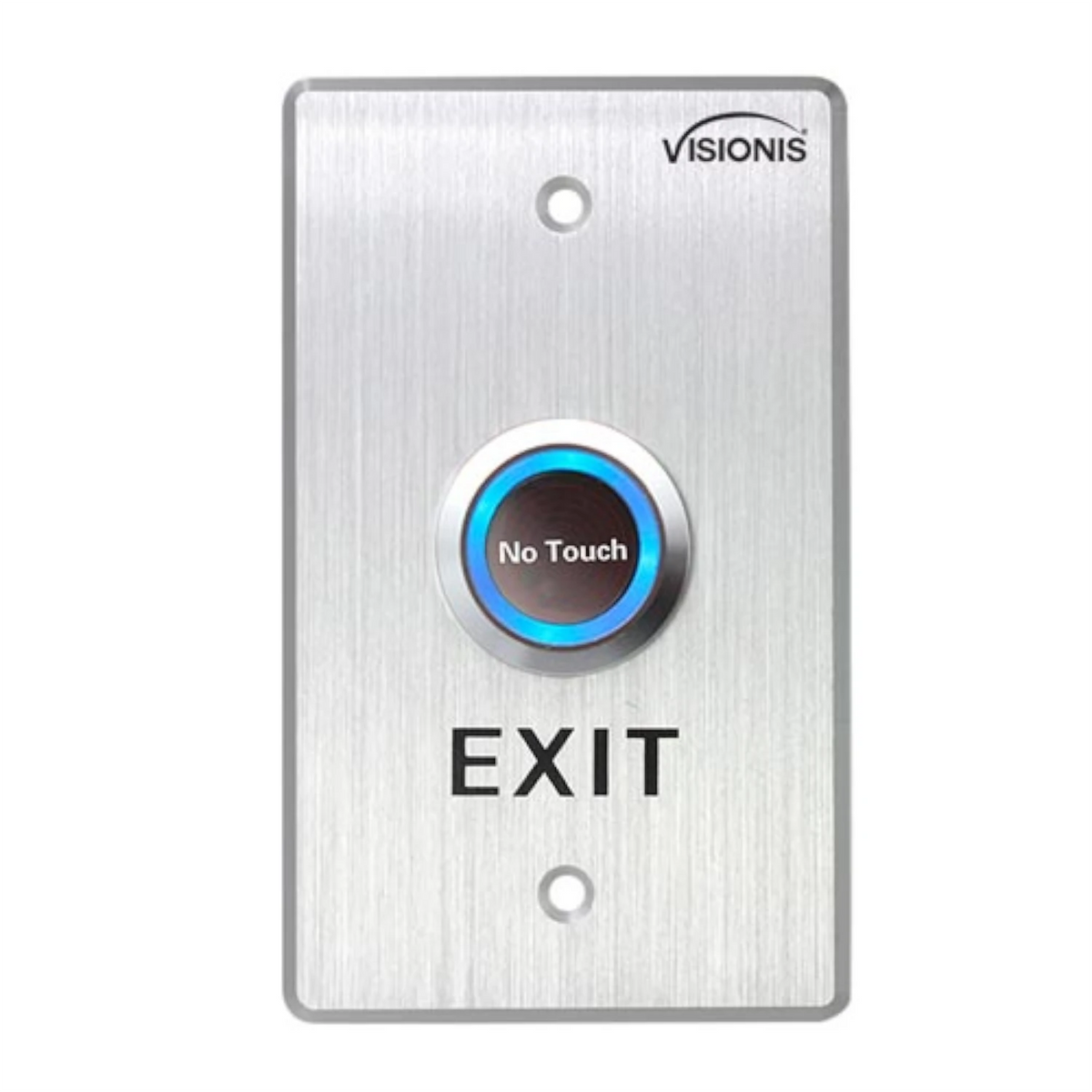

Visionis VIS-7013 – Indoor Stainless Steel No Touch Request To Exit Button With Time Delay Standard Size With LED Light NC COM And NO Outputs


ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.


With our line of No Touch exit button, you no longer have to physically push a button to exit. All you have to do is wave your hand and the door will open. This No Touch exit button also includes a delay feature to up to 22 seconds.

Door Release Exit Buttons are the most common part of Access Control systems. They are often used in all types of applications such as in Offices, Banks, Gas Stations, Department Stores, and much more.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or Electric strike Device.

(these products do not include a power supply)


Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC

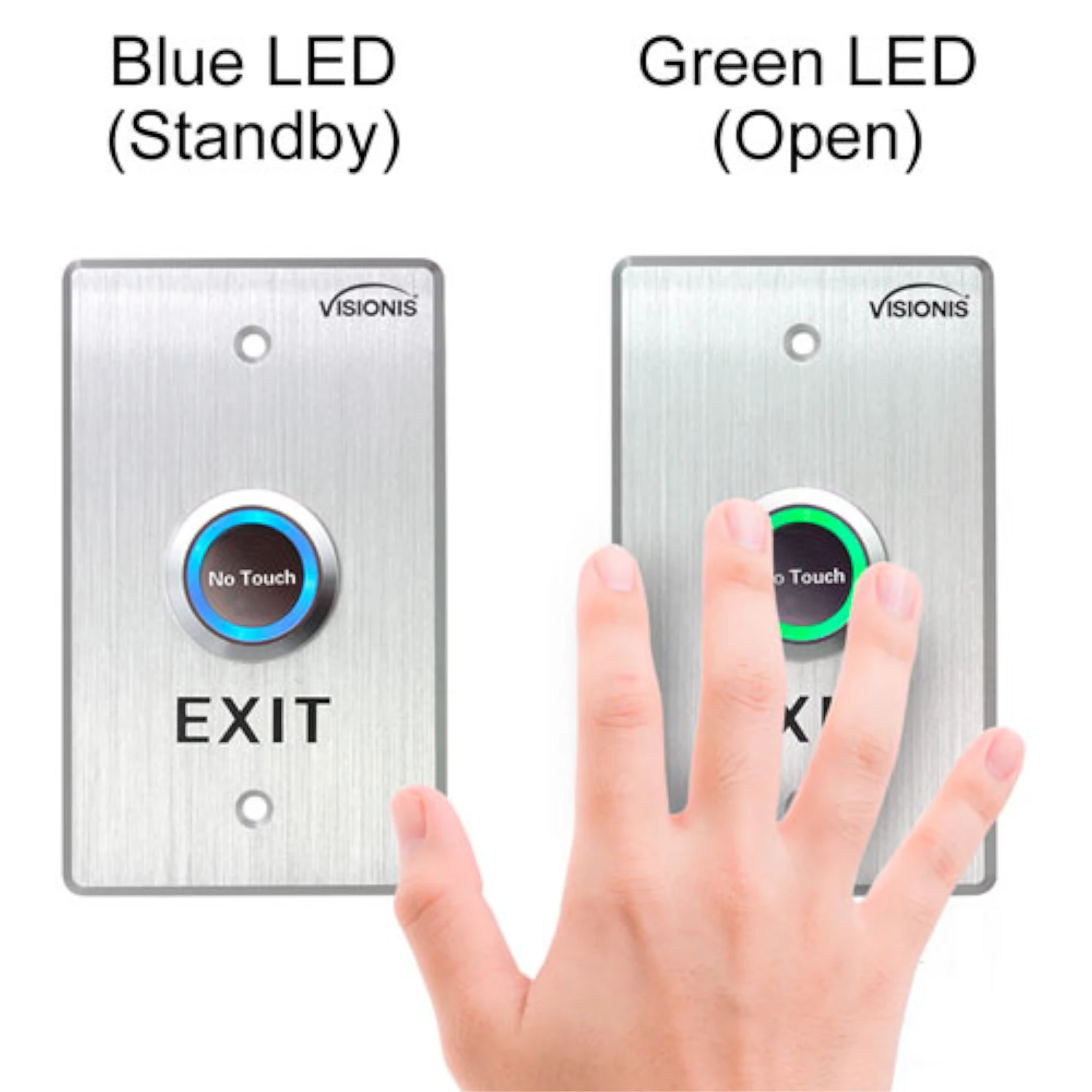

  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)

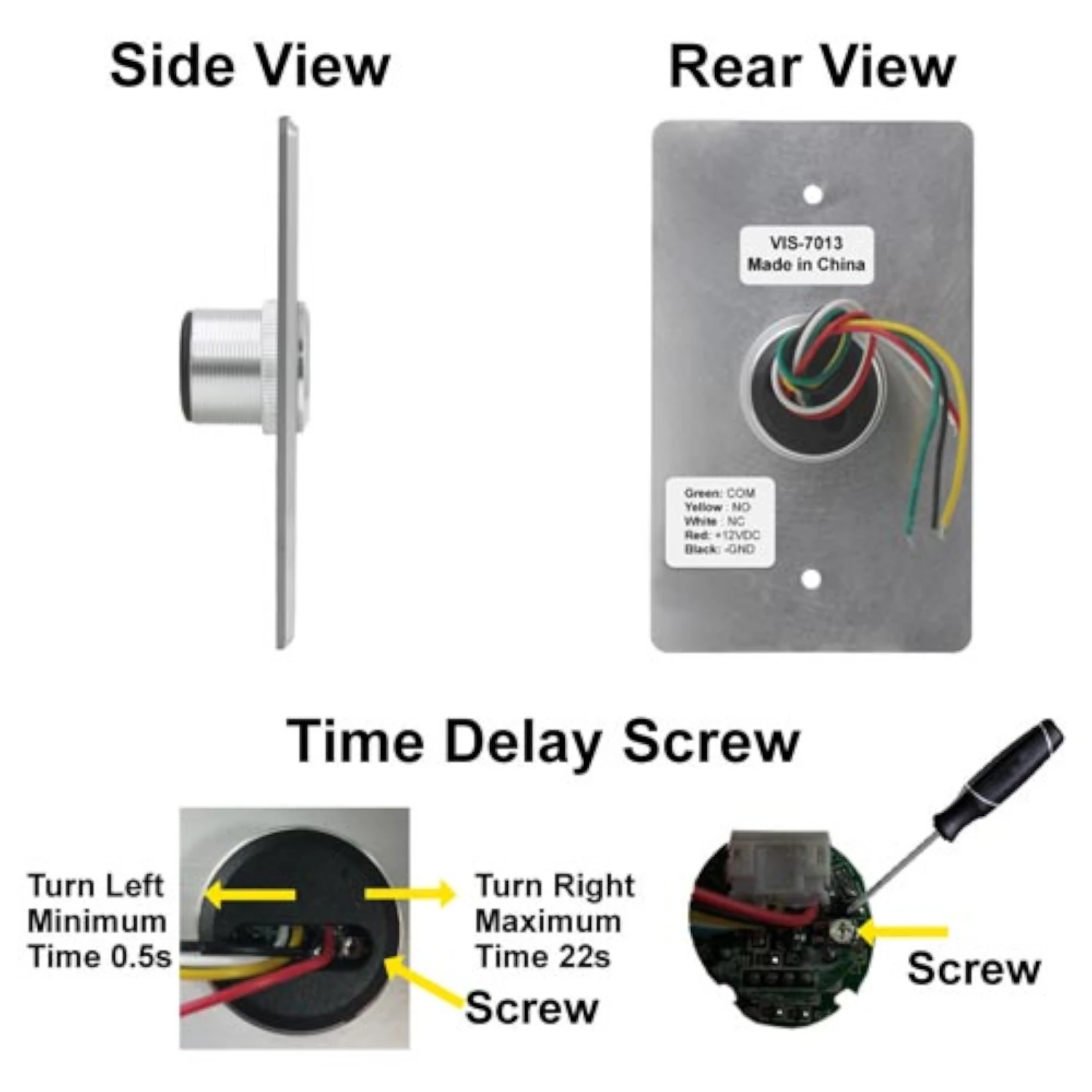

  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg

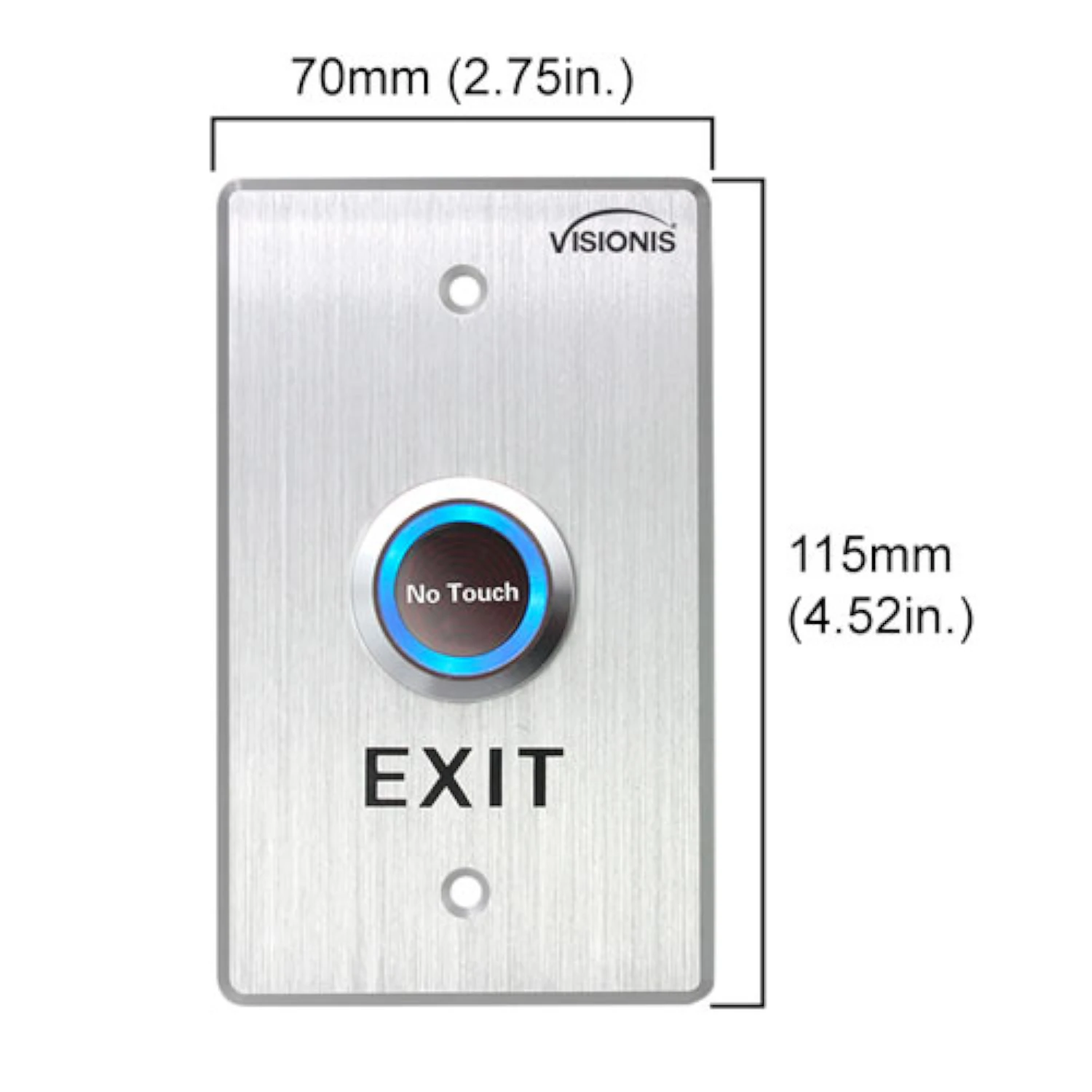

  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
