Visionis VS-SS1500-G – 1500 Lbs Out Door And Gate Electromagnetic Lock


ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.


This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

The Visionis SS1500-G is an electromagnetic lock that is renown with its water-proof construction for all weather conditions and its heavy-duty excellent holding force. For your outdoor and gate applications, this maglock provides 1500lbs of reinforcement and secures your door at all times. This lock is designed to handle the outside elements and still provide the security for your doors to remain closed and locked. The popular areas for these type of locks are outdoor and industrial areas.


Model No. VS-SS1500-G:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 450mA ; 24V / 220mA (±5%)
  • Holding Force: Up to 1500 lbs (680 kg)
  • Hall Effect Contact : 28 VDC, 0.2A, 5W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Operating Humidity: 0~95% (non condensing)
  • Weight (Magnet): 4.5 kg (±1%)

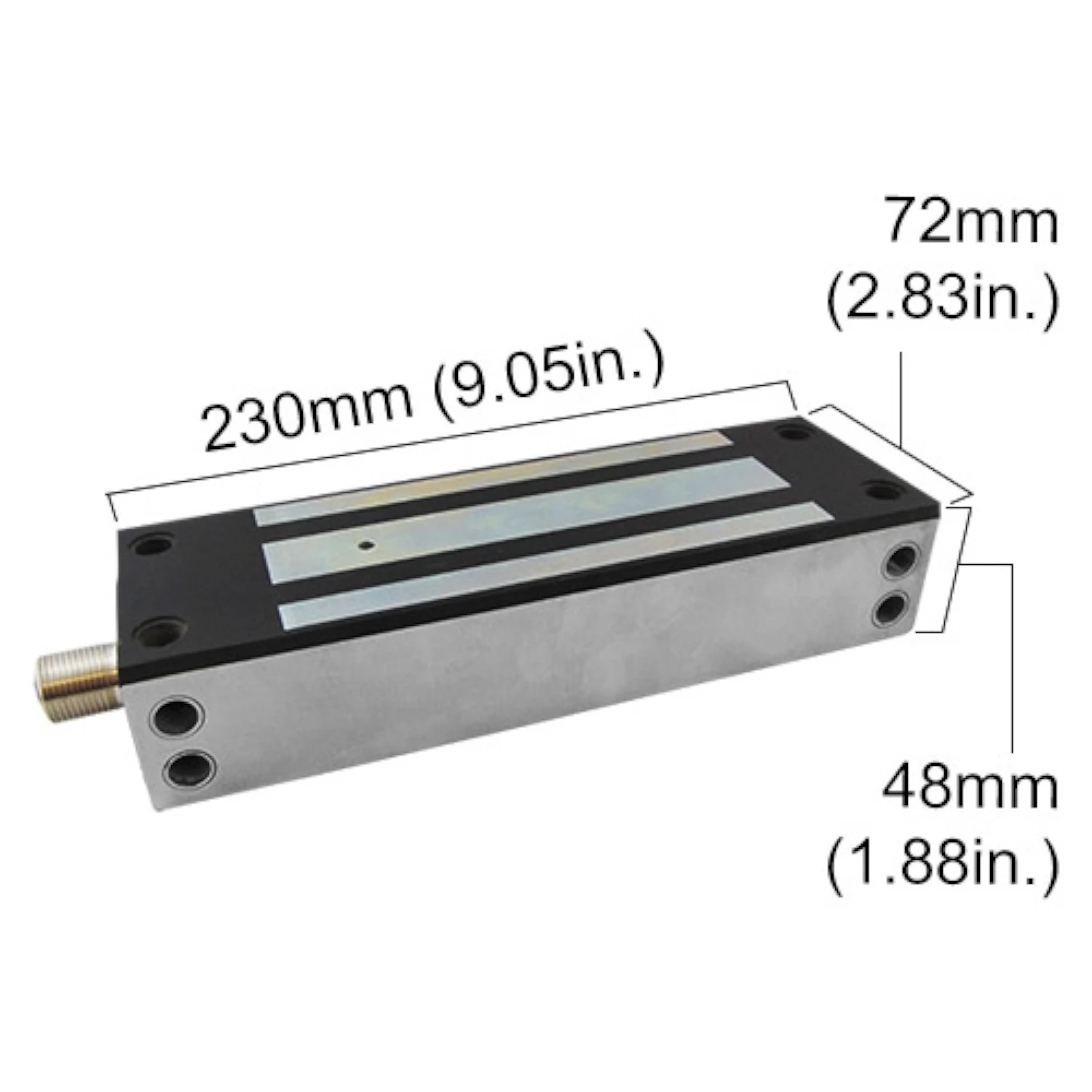

  • Dimensions:
    Magnet - (L) 230x(W)72x(T)48 mm
    Armature - (L) 200x(W)70x(T)16.5 mm
