Visionis VIS-7005 – Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM And NO Outputs


ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.


The VISIONIS Request-to Exit Buttons and Switches offer a variety of options to fit several applications’ needs.

The VISIONIS line is designed to provide a reliable source of egress access-controlled opening devices in residential, commercial and industrial locations.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or Electric strike Device.


Model No. VIS-7005:

  • Contact Rating: 3A/12-24V

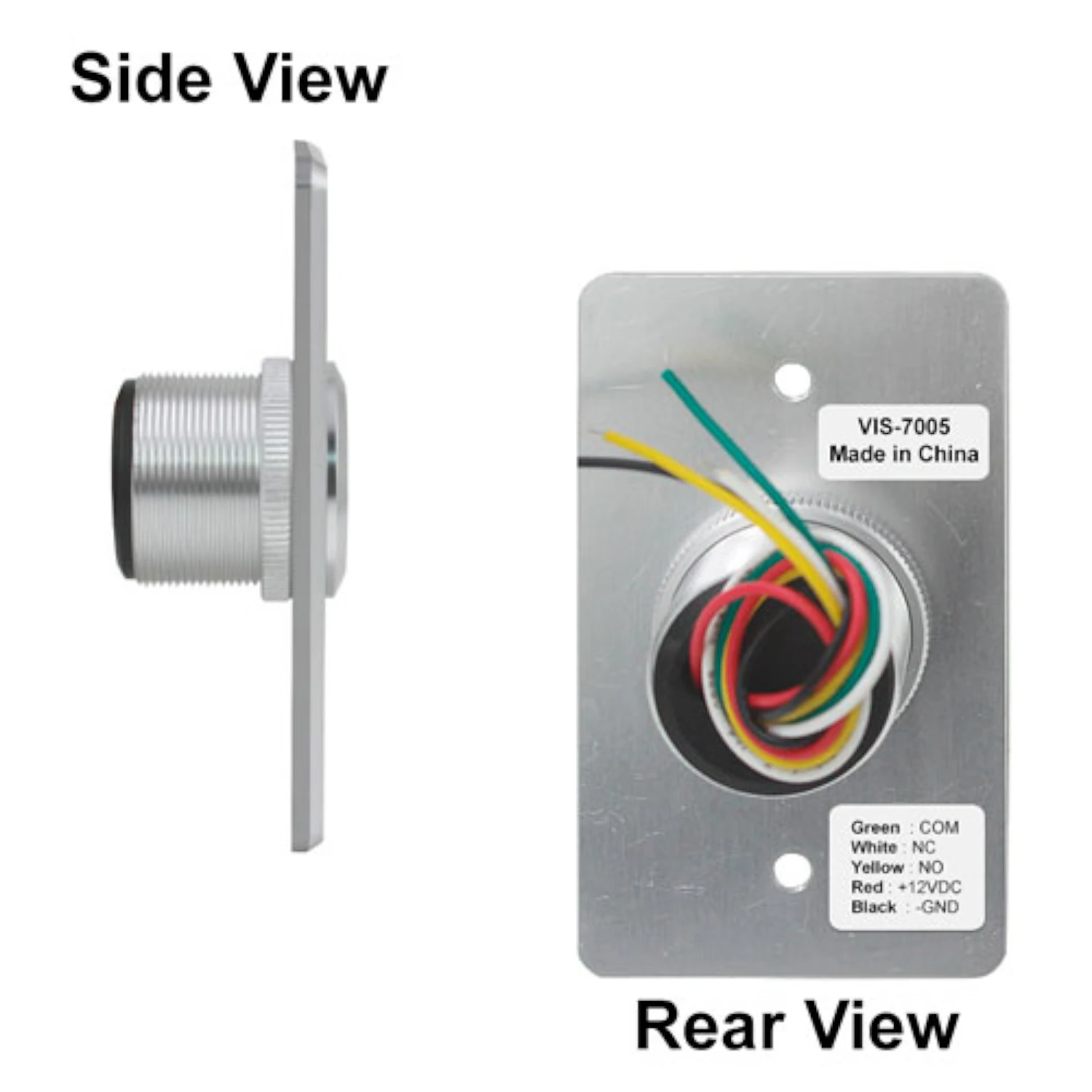

  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC

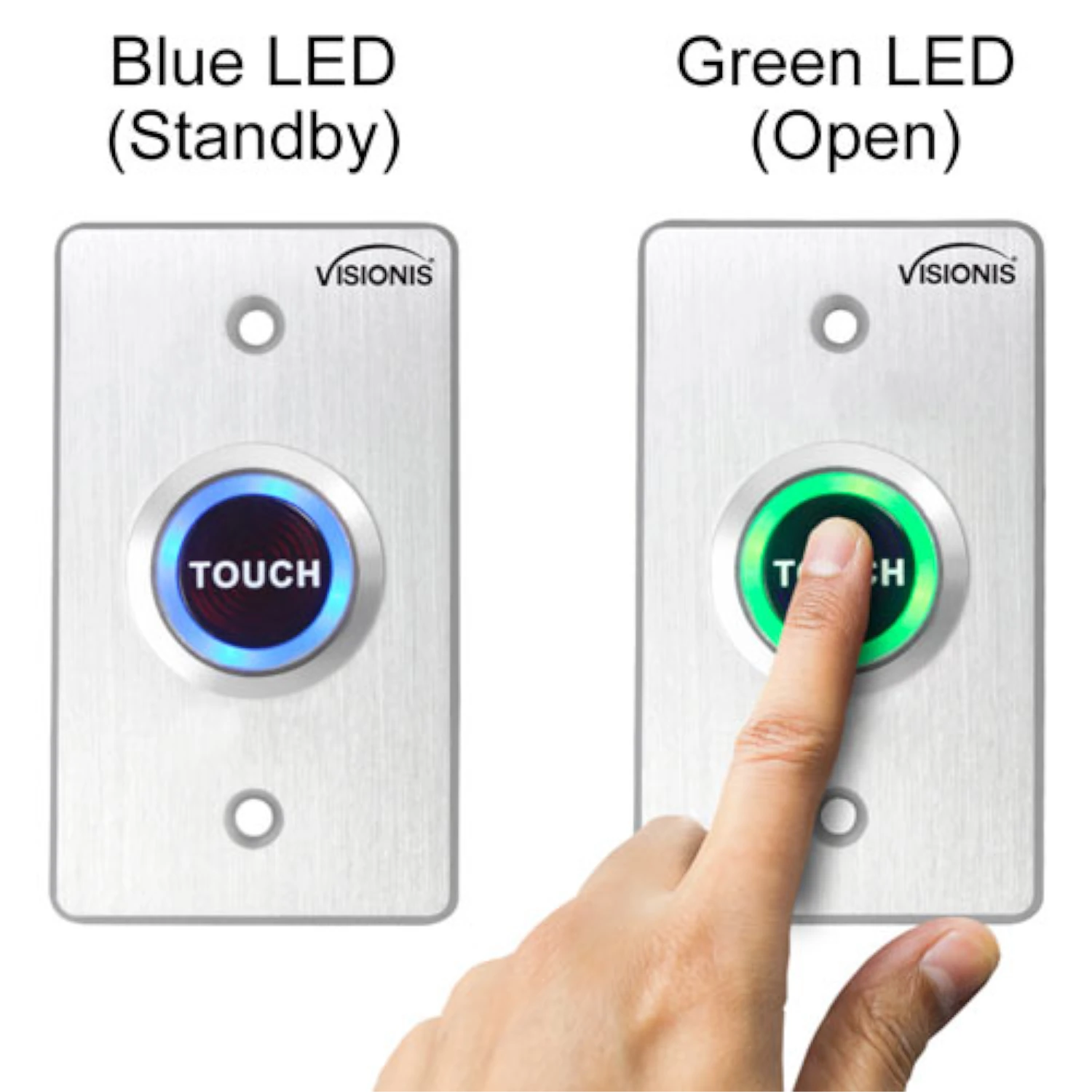

  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg

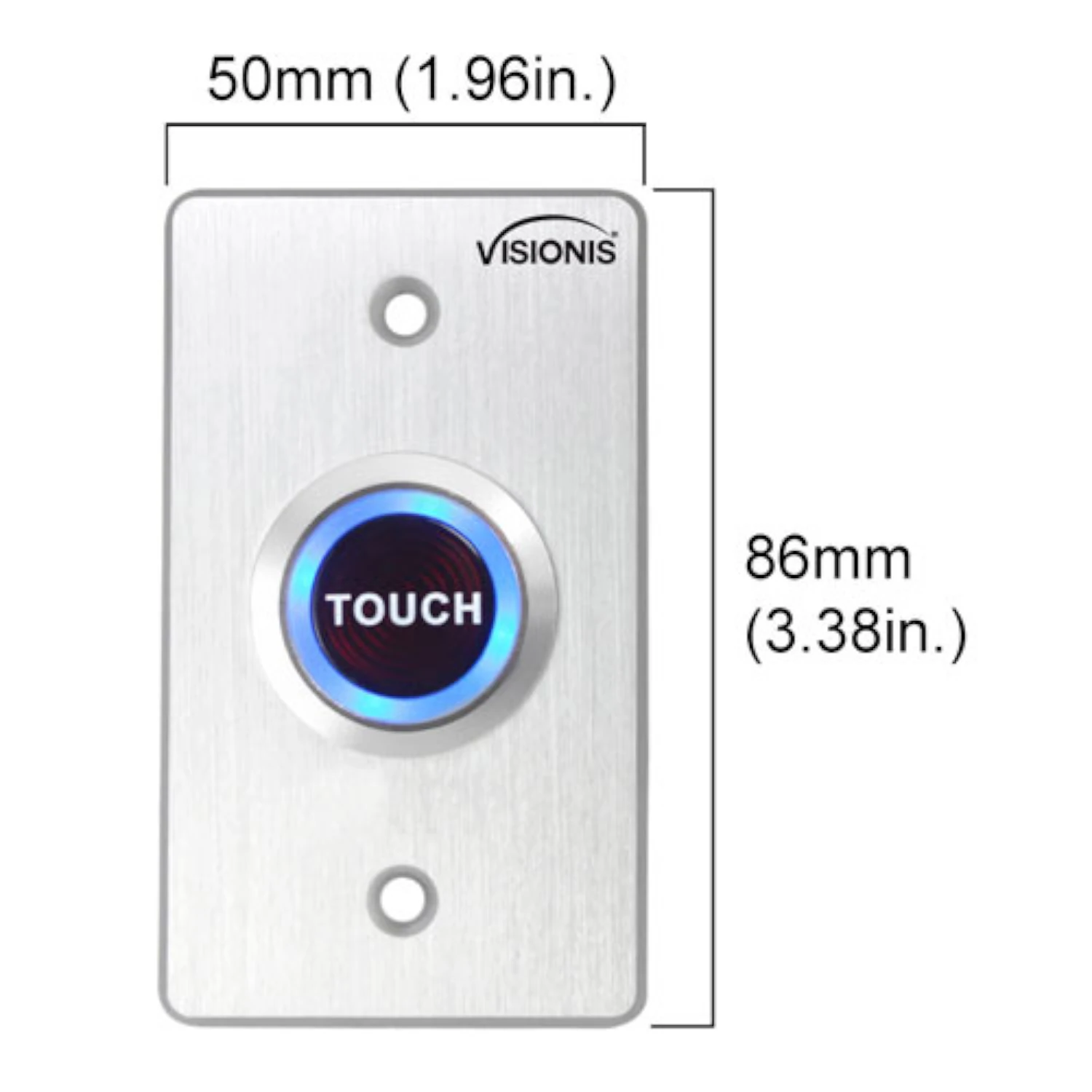

  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
