Visionis VIS-7040 Square Push To Exit Button For Door Access Control With LED Light, NC, COM, NO Outputs + Green And Red Color “PUSH TO EXIT” And “PRESIONE PARA SALIR” Plates + Blue Handicap Plate

$48.82

ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.

Description

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

The VISIONIS Request-to Exit Buttons and Switches offers a variety of options to fit several applications needs.

The VISIONIS line is designed to provide a reliable source of egress access controlled opening devices in residential, commercial and Industrial locations.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or Electric strike Device.

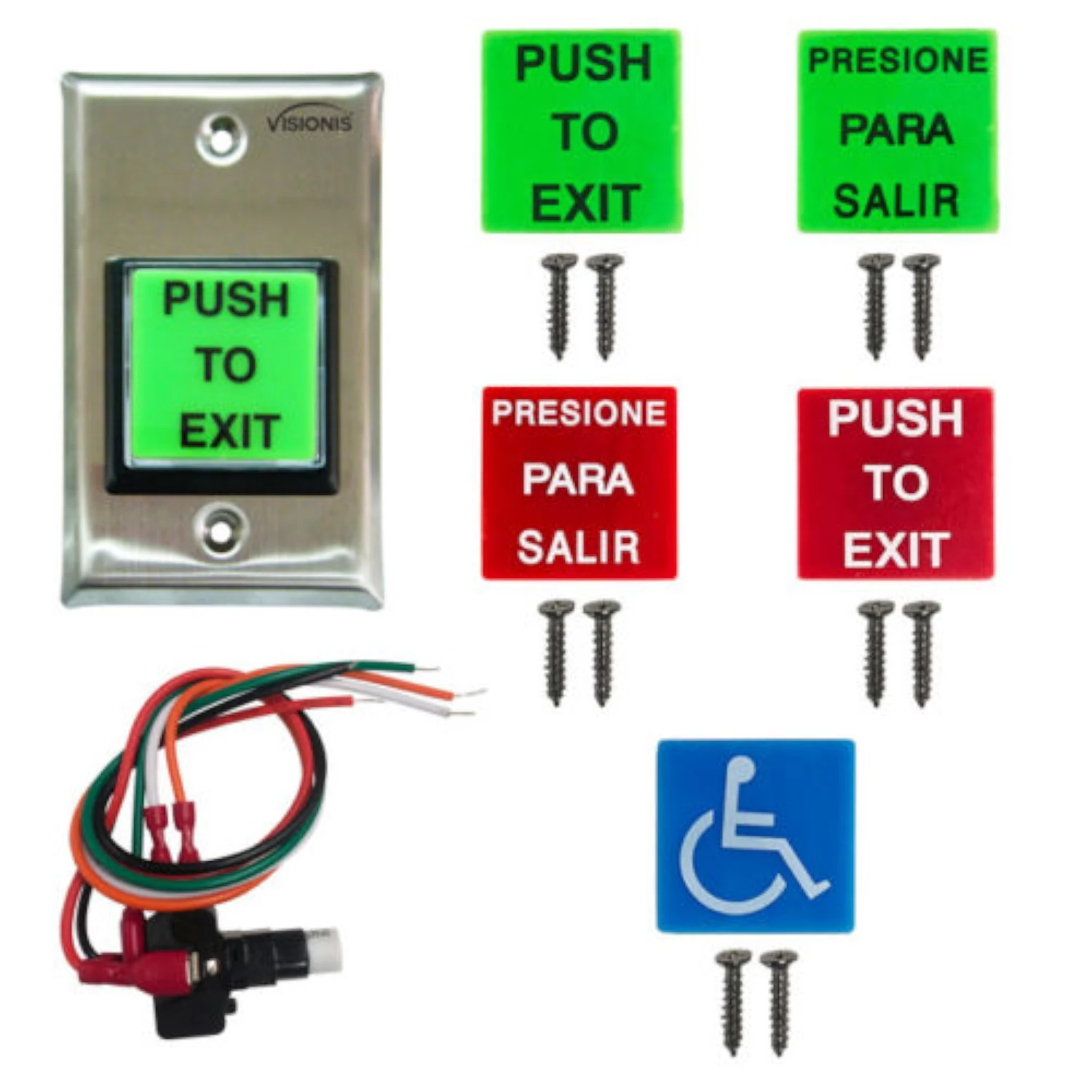

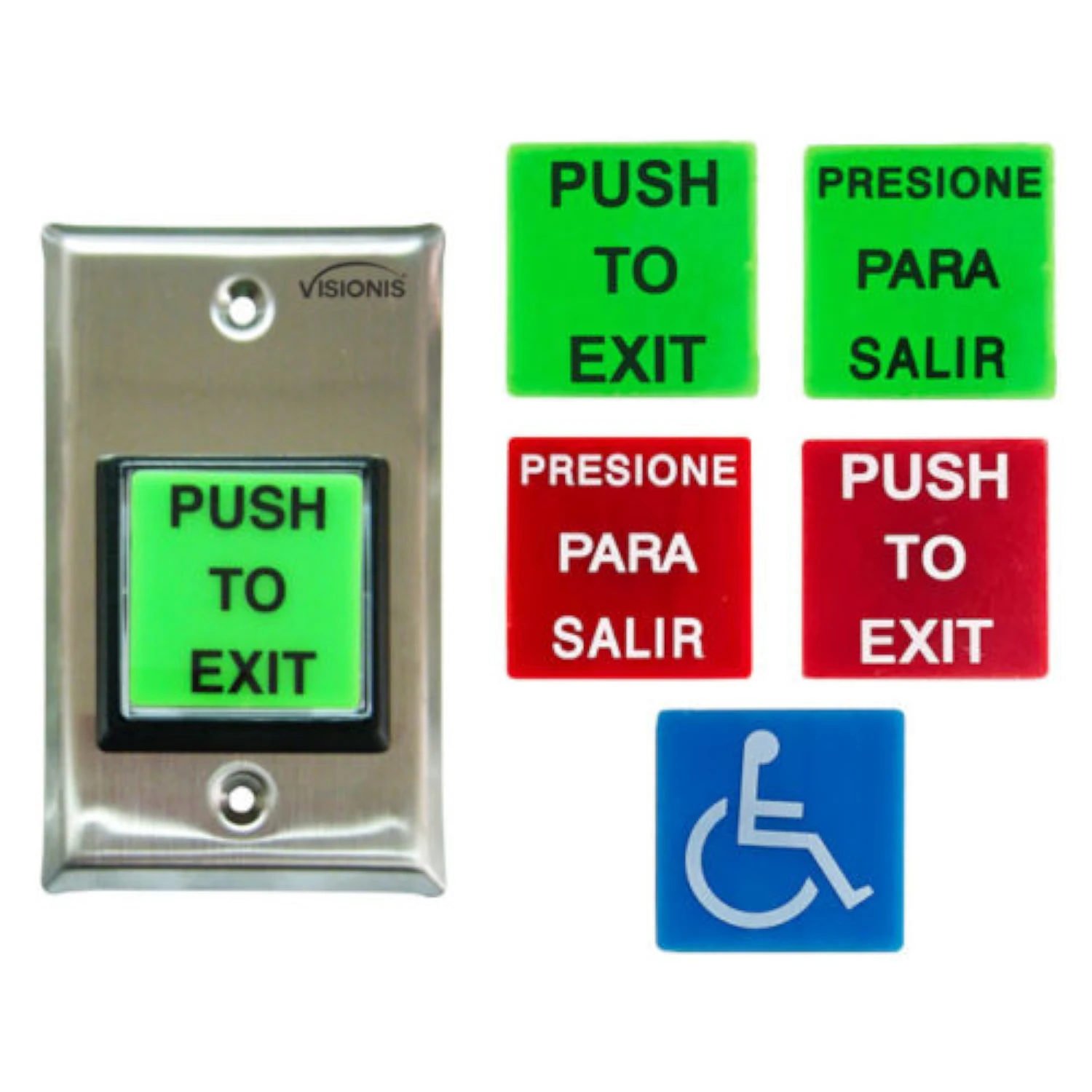

This Exit Button includes the following plates:

  • “PUSH TO EXIT” in green and red color.
  • “PRESIONE PARA SALIR” in green and red color.
  • Blue handicap plate.

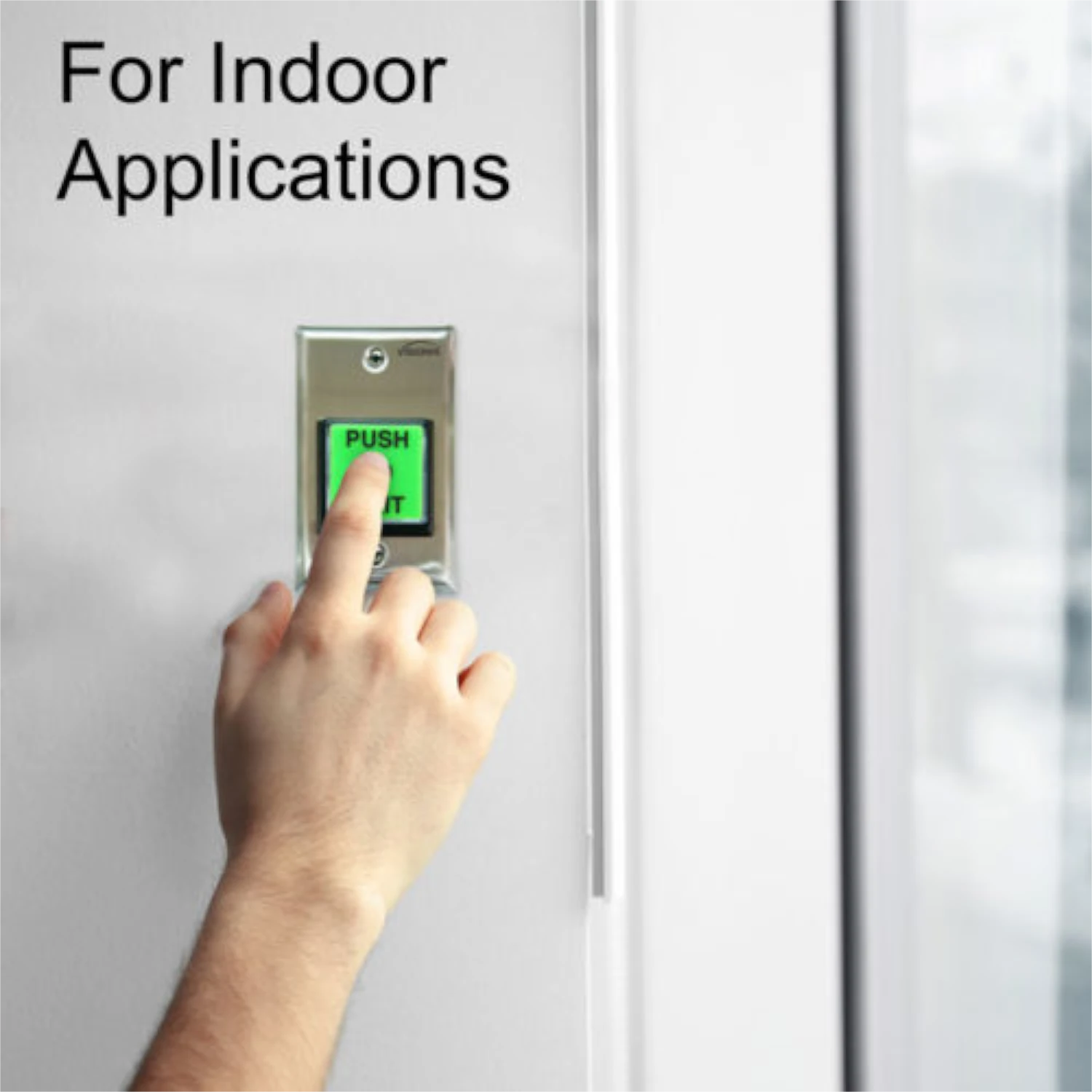

Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Specifications

Model No. VIS-7040:

  • Stainless-steel face-plate.
  • Fits into standard single-gang box
  • Large squared green color push button.
  • 12-Inch, AWG 18 wire leads
  • Degree of Protection: IP-40
  • LED: Yes
  • LED Life: 20000hours
  • Switch Material: Plastic
  • Switch Plate Material: Stainless Steel
  • Dimension of Mounted Switch: 57 mm or 2.24 In.

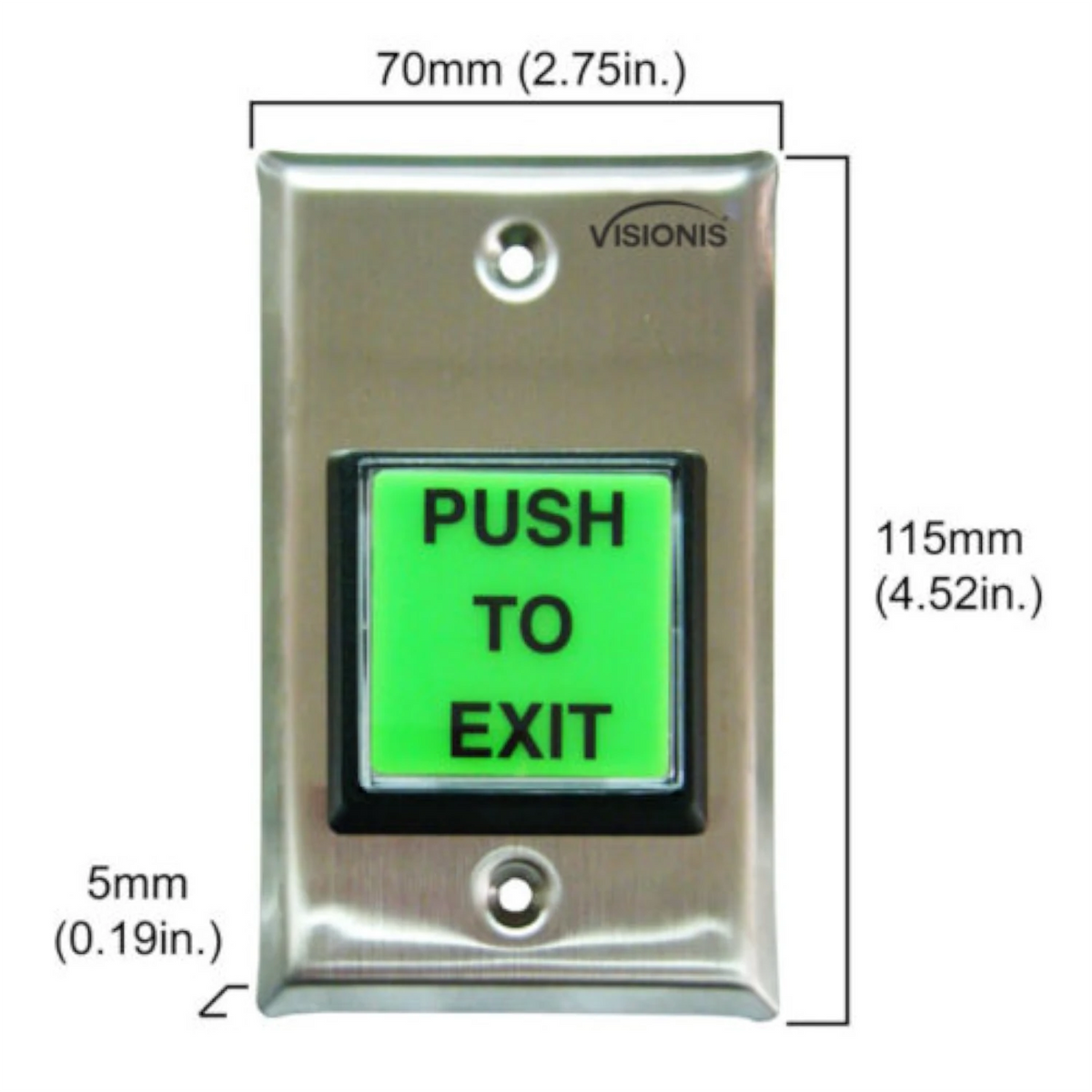

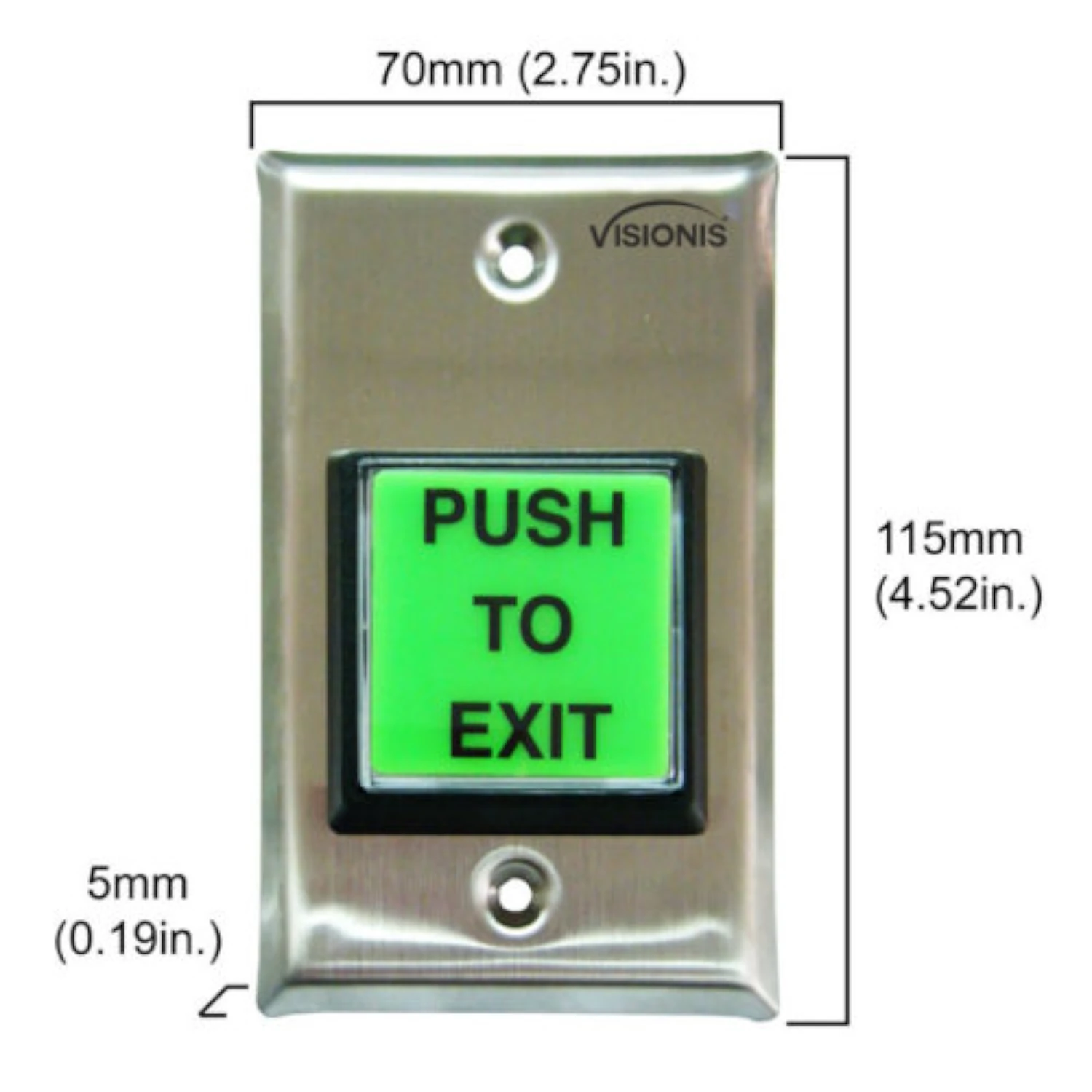

  • Dimension of Exit Button: 115L×70W×5H mm or 4.52L×2.75W×0.19H Inches.
  • Standard: U. S. A Standard
  • NO/NC contact rated 10A@125~250 VAC.
  • Illum. S.P.D.T.
  • Attention: This exit button is meant for indoor use. This Exit button does not have a delay
