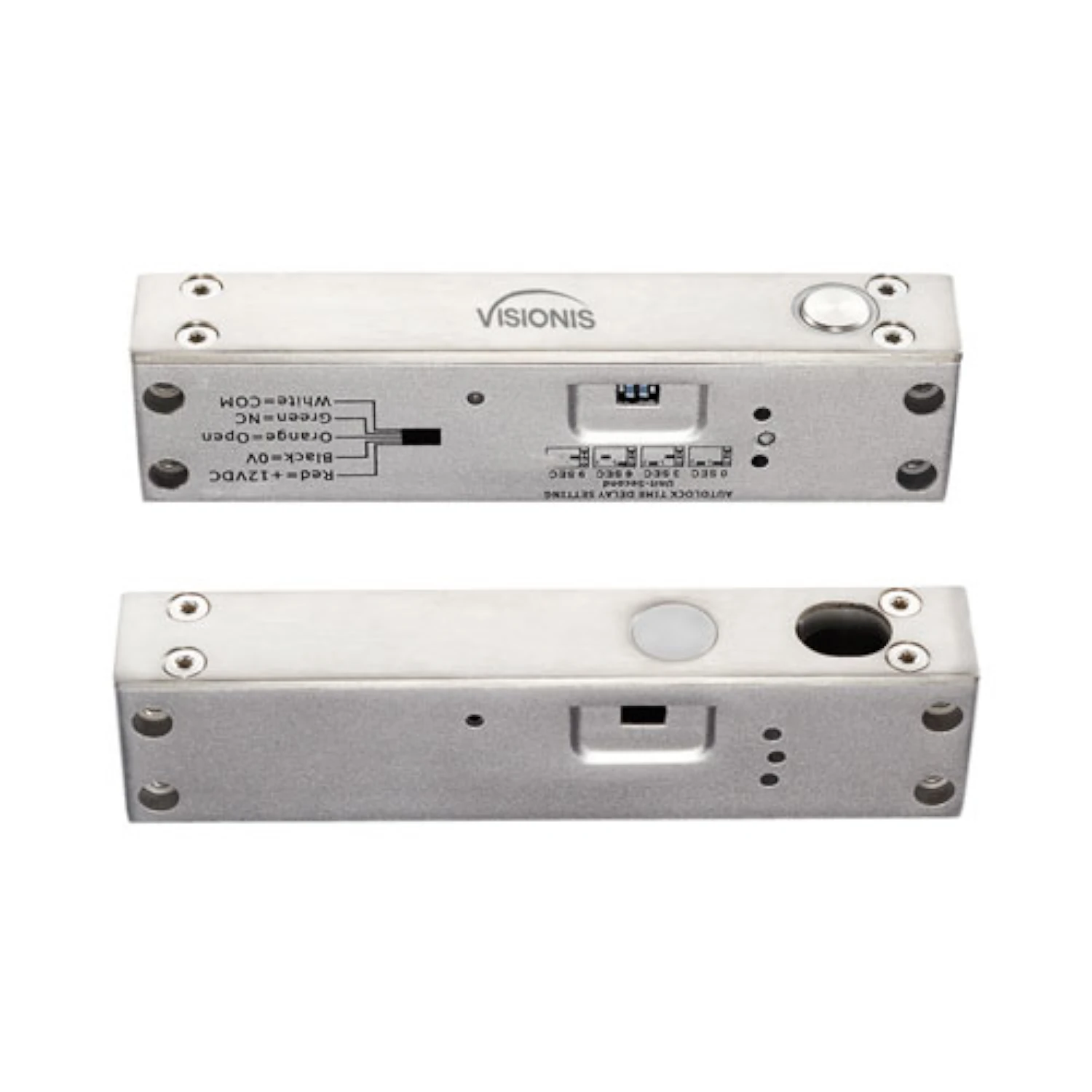

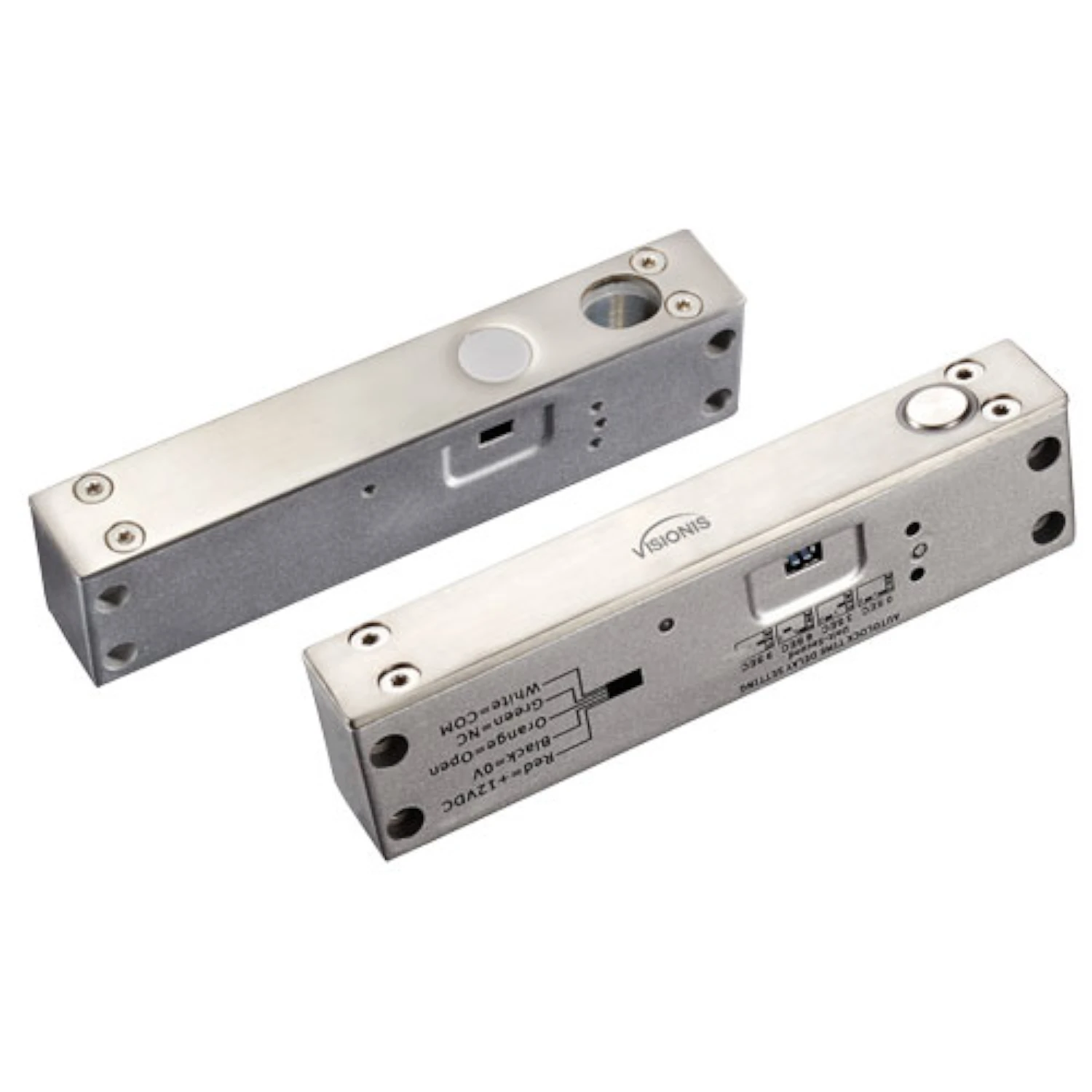

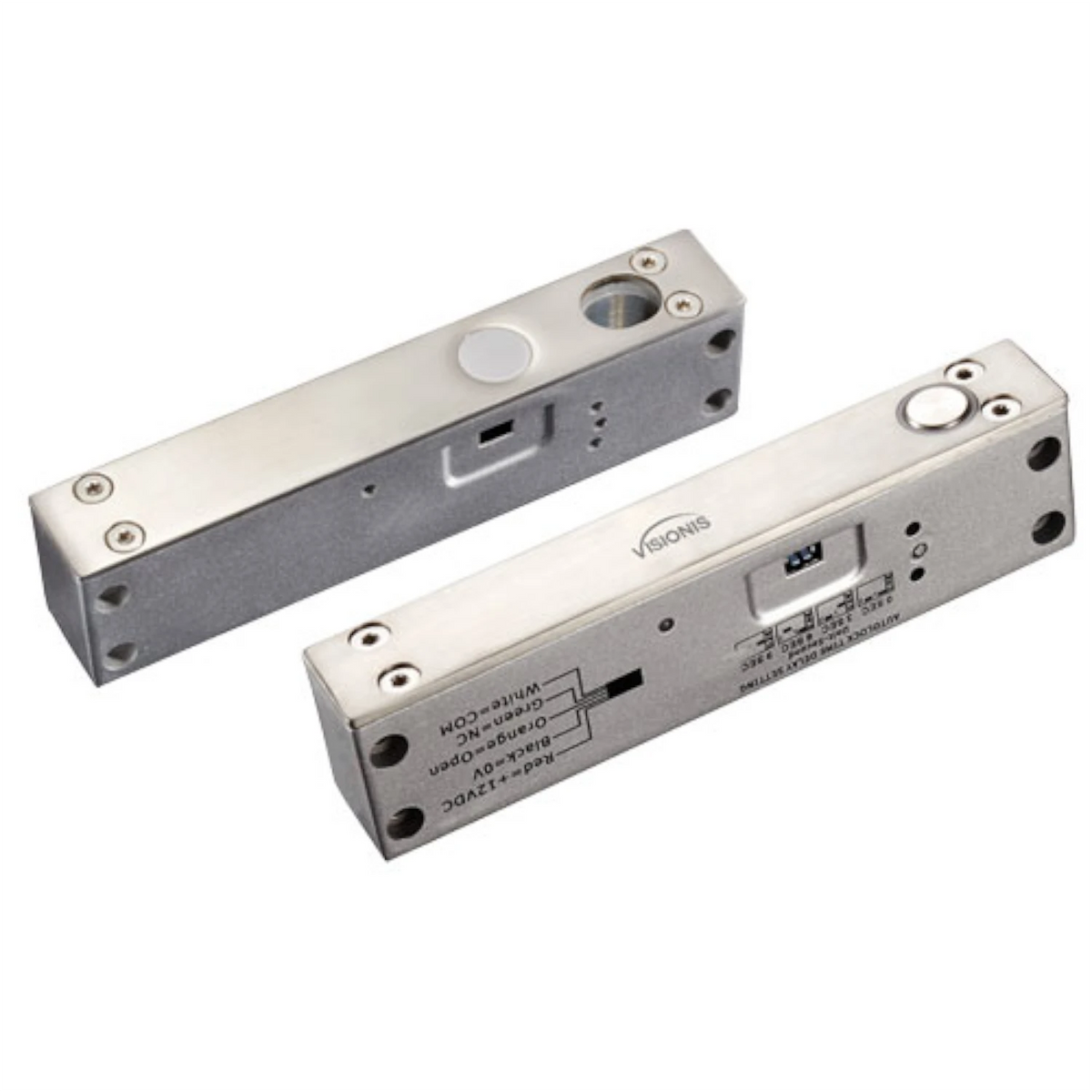

Visionis VIS-DP104ND-FSA-LED – Electric Drop Bolt Lock 2,200lbs For Narrow Door With LED And Time Delay Fail Safe Normally Closed Dead Bolt


ATTENTION: Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.


This KIT has a 3 YEAR warranty with full access to tech support in the USA!

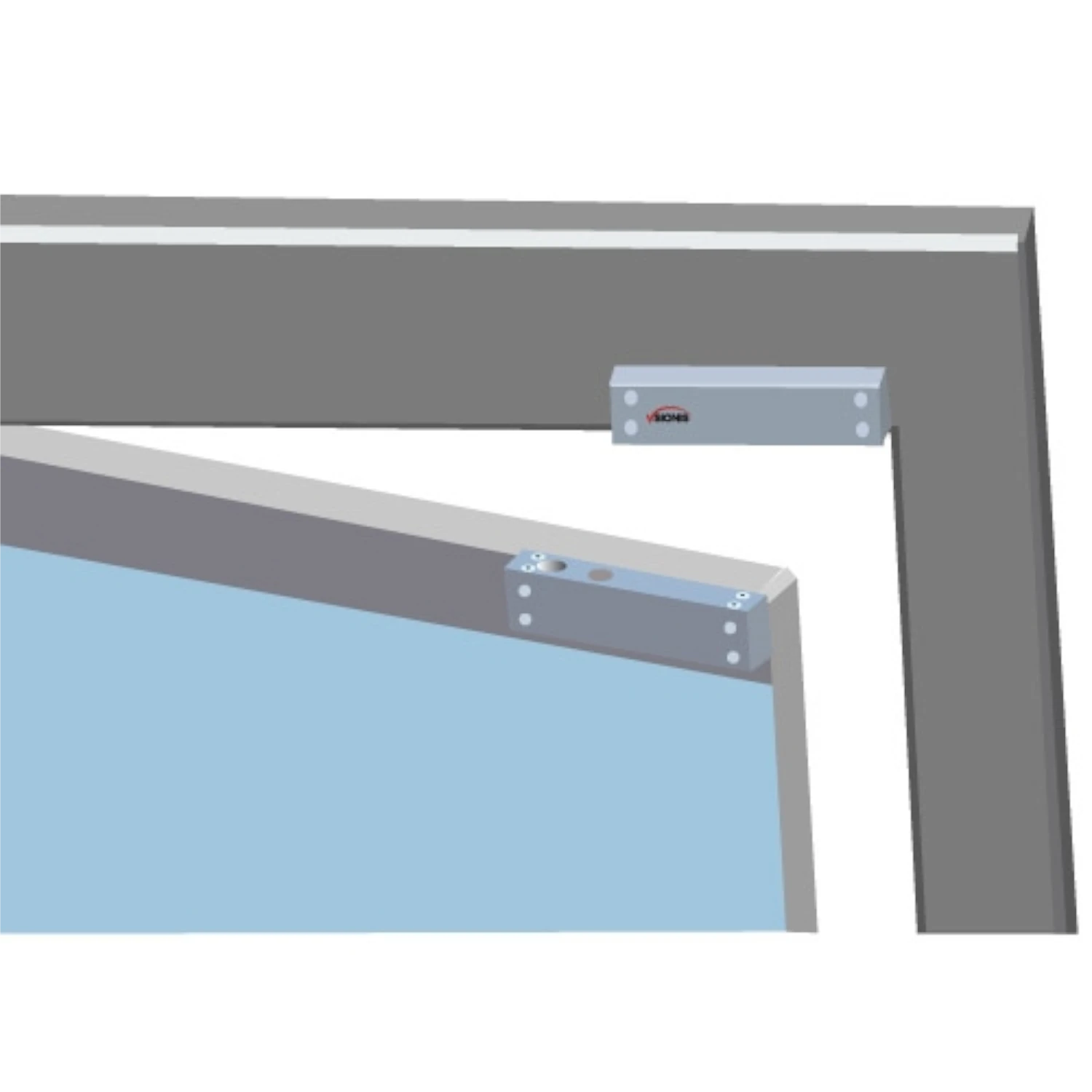

The Visionis DP104ND-FSA-LED is a quality normally closed drop bolt lock for narrow doors that provides 2200lbs of reinforcement with LED and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, 6, or 9 seconds. This particular drop bolt is fail-safe; meaning that in the case of a power outage, the bolt will retract and the door will become unlocked.

(these products do not include a power supply)


(these products do not include a power supply)

Model No. VIS-DP104ND-FSA-LED:

  • Fail Safe: Unlocks if power is lost

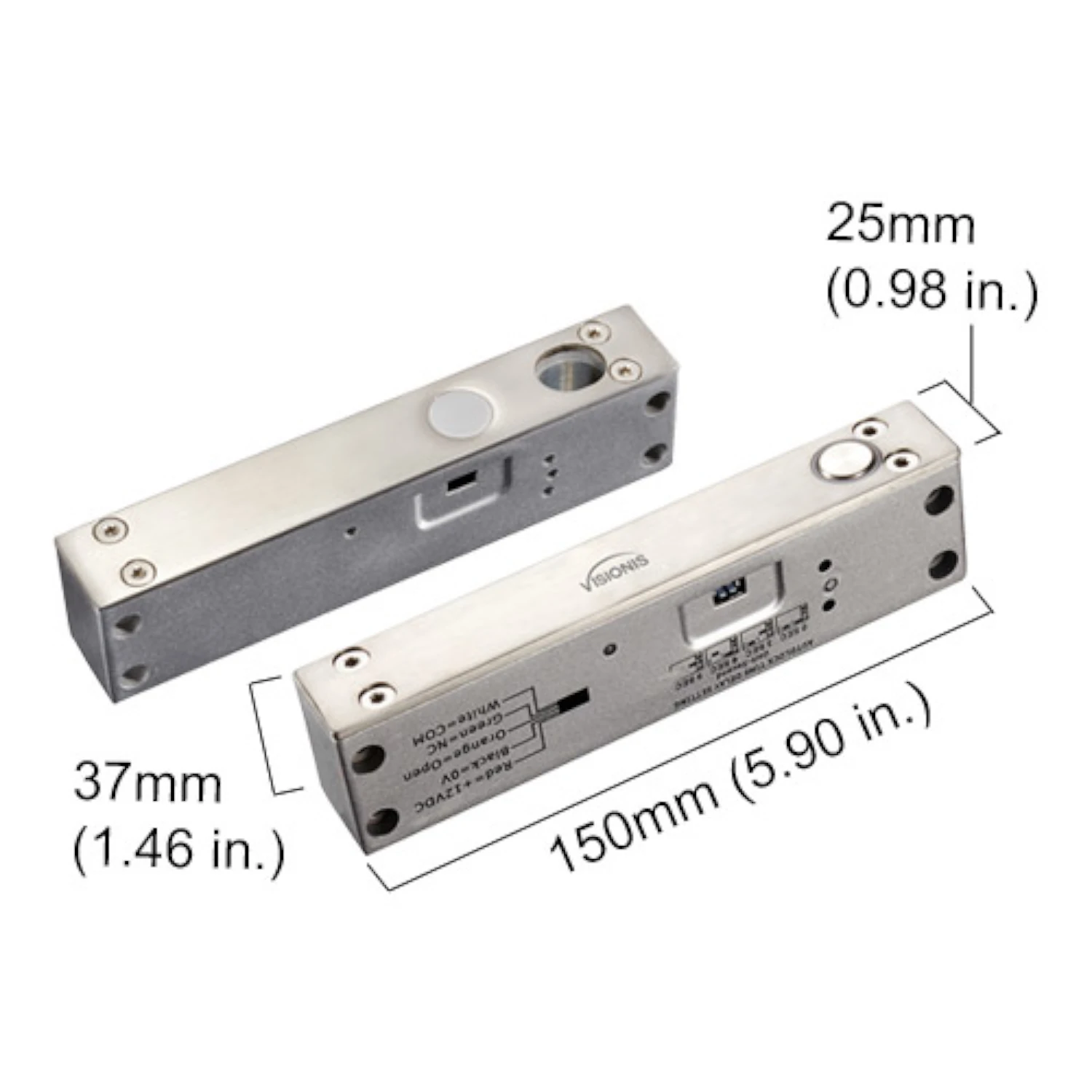

  • Face Plate: 150Lx25Wx37H (mm) – 5.90Lx0.98Wx1.46H (in.)
  • Bolt: 16mm (0.62in.) DIA, stainless steel 13mm (0.51 in.) throw
  • Voltage: DC12V (DC24V)
  • Start Current: 960mA
  • Standby Current: 180mA
  • Solid Bolt: polishing housing, 1000Kg (2200lbs) Holding Force
  • Suitable For: Electric Bolt For Narrow Door
  • Signal Output: Door status Output, NO/COM
  • Surface Temp.: Low Temperature
  • Induction Distance: 8mm (0.31 in.)
  • Operating temp.: -10~+55°C (14~131°F)
  • Operating Humidity: 0~90% (non-condensing)
  • Special Designed: Tested to 500000 operations
  • Face place material: Stainless Steel
  • Weight: 1.06kg (2.33 pounds)
